information about Fukushima published in English in Japanese media info publiée en anglais dans la presse japonaise
3 Juin 2014
June 3, 2014
Work started June 2 on a 32-billion-yen ($314 million) project to build an underground frozen wall at the stricken Fukushima No. 1 nuclear plant to address a chronic problem plaguing work at the site.
The plan is for the wall of frozen soil to divert groundwater into the ocean and prevent it from seeping into reactor buildings and becoming contaminated by radiation.
But given the enormity of the project--unprecedented in terms of scale and period of use--numerous risks and potential hazards exist.

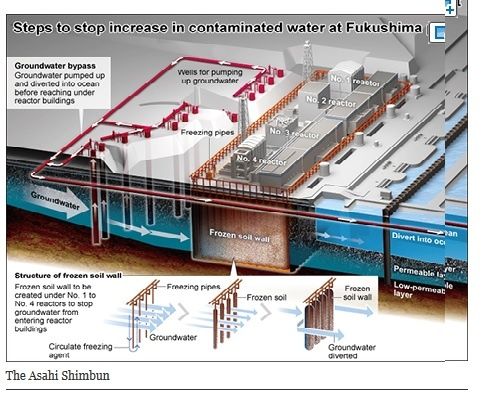

More than 1,500 pipes will be used to create the frozen soil wall, which will be about 30 meters deep underground and extend for about 1,500 meters around the buildings housing the No. 1 to No. 4 reactors.
Under the plan, the freezing process will start in March 2015 and take an estimated six months to complete. The wall will be kept frozen until fiscal 2020.
Tokyo Electric Power Co., the plant’s operator, has been forced to continually pump in huge amounts of water to cool the three nuclear reactors that melted down after the Great East Japan Earthquake and tsunami struck on March 11, 2011.
However, an estimated 400 tons of groundwater is entering the reactor buildings on a daily basis and mixing with the contaminated water used to cool the nuclear fuel. This has exacerbated TEPCO’s problems of storing and decontaminating accumulating radioactive water at the site.
Government officials estimate the wall will reduce the daily volume of groundwater entering the reactor buildings by 280 tons.
TEPCO submitted an application in March 2014 to begin work on the frozen soil wall. The Nuclear Regulation Authority approved the application on the condition that the work would not damage the network of underground pipes already in place under the Fukushima No. 1 nuclear plant.
Frozen soil walls have previously been used as a temporary measure for tunnel construction to prevent the flow of groundwater from causing the tunnel to collapse. There has never been a frozen wall project as large as the one envisioned for the Fukushima nuclear plant.
The work that started June 2 involved digging holes at 1-meter intervals for the eventual burial of 1,550 pipes. Liquids at temperatures of minus 30 degrees will be circulated through those pipes to freeze the surrounding soil.
The Nuclear Regulation Authority, TEPCO and the central government must carefully monitor construction work for possible cracks in the underground piping that could cause leaks of the freezing agent. They also must ensure that the frozen soil wall does not cause a dramatic change in the groundwater flow that could cause radiation-contaminated water in the basements of the reactor buildings to spill out.
The agent in the piping system will have to be continuously circulated to freeze the surrounding soil, meaning electricity equivalent to the amount used by about 13,000 households will be needed to operate the frozen soil wall system.
But there is no assurance that the frozen wall will reduce the volume of contaminated water by the levels forecast. Groundwater could still flow under the 30-meter wall and enter the reactor buildings.
Rain falling on the Fukushima No. 1 plant site could also become contaminated after mixing with the water used to cool the nuclear fuel.
Even if the frozen soil wall succeeds as planned, TEPCO would still have about 480,000 tons of contaminated water--including 360,000 tons containing high levels of radiation--on its hands.
As of May 27, about 900 tanks at the plant site were holding that volume of water. TEPCO plans to install more tanks at the plant site so that a total of 800,000 tons can be stored by the end of fiscal 2014.
If the tanks leak--a repeated problem at the site--the water would contaminate the surrounding environment and affect work to eventually decommission the four reactors.
TEPCO in May began another measure to divert groundwater away from the reactor buildings at the Fukushima No. 1 plant.
On June 2, about 830 tons of groundwater that had been pumped up before it flowed under the reactor buildings was released into the ocean, the third such release since the groundwater bypass system started.
TEPCO officials initially said the bypass system could reduce 100 tons of groundwater that reached the reactor buildings.
However, that estimate was later reduced to between 20 and 100 tons because several months are needed before the full effects of the system come into play, according to TEPCO officials.

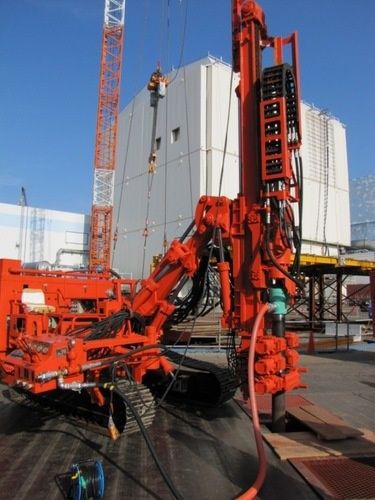

A heavy machine is used to drill a hole on June 2 near the No. 1 nuclear reactor building in which a frozen pipe is to be inserted to build an underground frozen wall at the Fukushima No. 1 Nuclear Power Plant. (Photo courtesy of Tokyo Electric Power Co.)
http://mainichi.jp/english/english/newsselect/news/20140603p2a00m0na007000c.html
Tokyo Electric Power Co. (TEPCO) started to build a 1.5-kilometer underground frozen wall around the buildings housing the No. 1 to 4 reactors at the Fukushima No. 1 Nuclear Power Plant on June 2 -- a key project to address the buildup of radioactive water at the complex.
People in the fisheries industry in Fukushima Prefecture, who have been plagued with problems caused by contaminated water, are keeping a wary eye on the ambitious project, saying something like: "We can't tell if it will be truly effective until it is completed" and "We can do nothing but pray that it will not move in a worse direction."
According to TEPCO, the operator of the crippled nuclear power station, the utility started drilling a hole in which a frozen pipe (12 centimeters in diameter and 26.4 meters in length) is to be inserted in the area northwest (on the mountain side) of the No. 1 reactor building at 4:43 p.m. on June 2. The utility plans to insert a total of 1,550 pipes into the ground at 1-meter intervals, but TEPCO says it will take about five days to insert one pipe into the ground. The utility says it plans to start freezing the underground wall in March next year.
Minus 30 degrees Celsius coolant will circulate through the pipes so that a wall of frozen soil about 30 meters deep and about 1.5 kilometer long will be created. The Nuclear Regulation Authority (NRA) has been wary of possible ground sinking and tilting of the reactor buildings as a result of changes in the flow of ground water. But TEPCO said at the NRA's working group meeting on May 26 that the ground could sink only up to 16 millimeters. Thus, the NRA broadly endorsed TEPCO's plan to begin the construction of the frozen wall.
The amount of radioactive water increases by about 400 tons at the plant every day as ground water keeps flowing into the reactor buildings. Chief Cabinet Secretary Yoshihide Suga said at a news conference on June 2, "We hope it will make major progress toward resolving the problem of contaminated water."
People in the fisheries industry, who have suffered from damage stemming from harmful rumors about radioactive contamination of their seafood, are anxiously hoping that the project to build the ice wall will go smoothly.
Hiroyuki Sato, who heads the Soma-Futaba fisheries cooperative association, said, "We want to take the start of the construction work itself positively." But he still cannot remove a sense of distrust in TEPCO and the central government which have failed to take timely and effective measures in the past. "We can't tell whether the frozen wall is effective until we conduct research after the completion of the project," Sato said. Kenji Nakata, a senior official of the Fukushima Prefectural Federation of Fisheries Co-operative Associations, said, "In any case, fishery operators are praying that it will not move in a worse direction. We want them to carry out the work with no mistakes first."
Residents of the Miyakoji district in Tamura, Fukushima Prefecture, for which an evacuation order was lifted in April this year, called on TEPCO to adopt thorough safety measures. Kazuo Endo, a 65-year-old decontamination worker who recently returned to the district, says that only seven or eight of the 25 households in his village have returned to their original homes there. "It is difficult for the residents to decide to return home while it is not clear what will happen to the nuclear power station until it is actually decommissioned. We want them (TEPCO and the central government) to take proper measures."
With respect to the project to build the underground ice wall, meanwhile, some experts point to a possibility that contaminated water will trickle out after the water levels in the reactor buildings become relatively higher as a result of the lowering of water levels outside the reactor buildings. For this reason, Hitoshi Watanabe, who heads the nuclear safety division at the Fukushima Prefectural Government, called for carefully carrying out the project, saying, "Methods of controlling ground water must be established."
